Volume 3

$49 (includes Shipping)
Press to Purchase


How we Built our Onex
Volume 3

A step by step video demonstration for builders of the popular Onex light-sport aircraft kit from Sonex

Return to Build Videos

This triple DVD set continues the building sequence from where Volume 2 ends. (The demonstration of building shown in this video requires the viewer to have watched Volume 1 & 2 in its entirety.  This video is not meant to be useful without first watching both volumes) . This volume concludes the 3 volume series.

The pictures on this page are captured from the video itself and provide a look at the scope of building that is covered in this volume.

Note: This production is not associated or endorsed by SONEX. It does not replace or supersede the documentation provided with the kit.  It is meant to be an aid in building the aircraft and its methods are presented only as a suggestion to builders.

This affordable Volume 3 triple DVD video set  is approximately 3.5 hours in length .  The $49 price includes handling and first class postage. (International orders welcome, air mail postage included!)

$49.00  Includes First class shipping

You can use your credit card by pressing the ADD to CART button below (uses secure encrypted connection)

 OR you can send a check for $49 to:

HomebuiltHELP
Box 111
Brussels, WI 54204

We ship same day we receive your check!

OR

If you want to pay by credit card but not online, then email us at support@HomebuiltHelp.com with your phone number and best time to call and we can complete the transaction on the phone

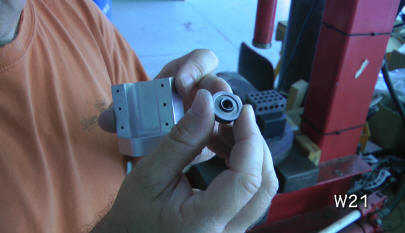

                                   Pivot bearing parts                                                              Paddle assemblies installed in ribs

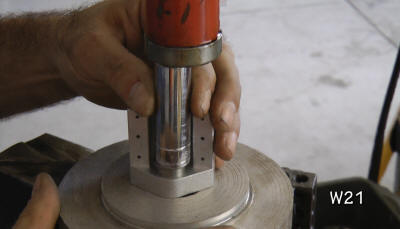

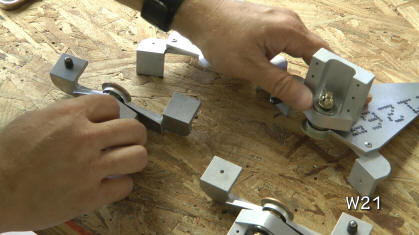

                     Pivot bearing installation using press                                             Assembling paddles to bearing blocks

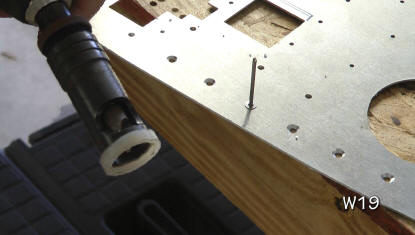

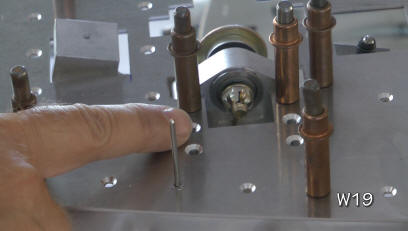

                       Explanation of countersink tools                                                           Showing countersunk holes

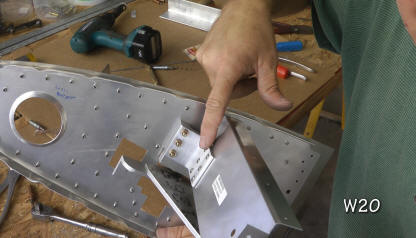

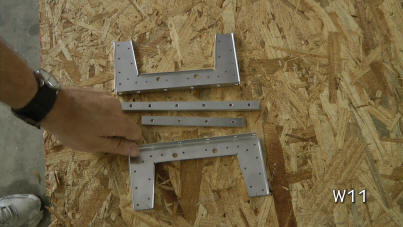

Bracket installation                                                                     Gusset sequence for ribs

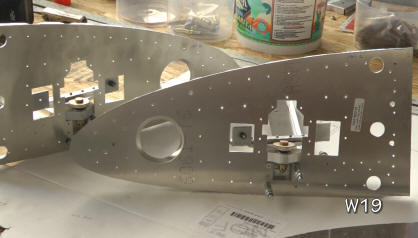

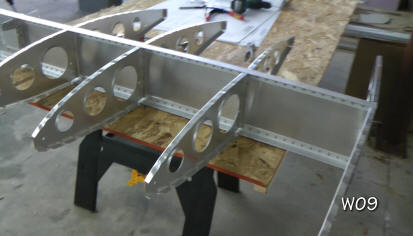

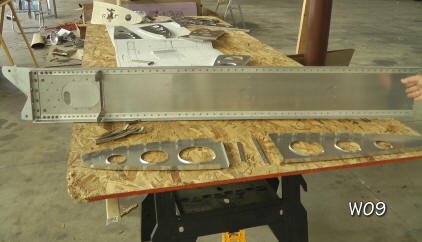

                             Outer wing spar assembly                                                             Ribs to outer wing spar

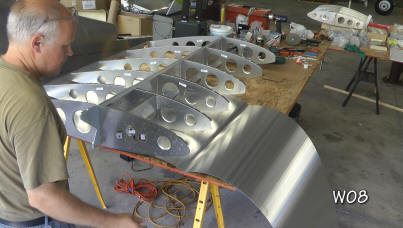

                          Rib alignment                                                                                   Skinning outer wings

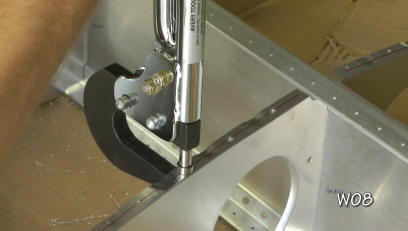

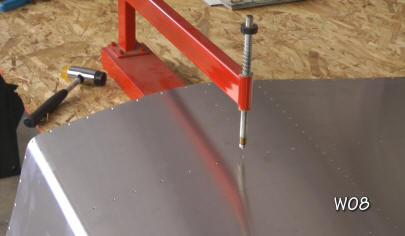

                         Dimpling for flush rivets                                                                      Dimpling hard to reach holes

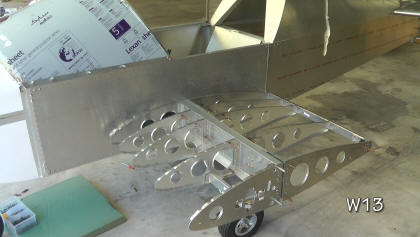

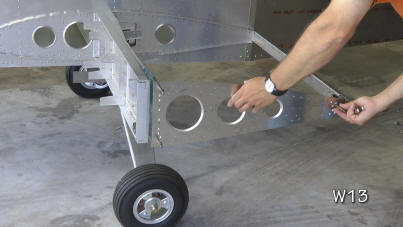

                             inner wing rib installation                                                              Inner wing ribs complete

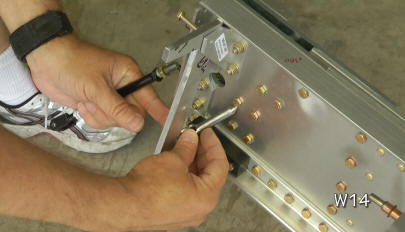

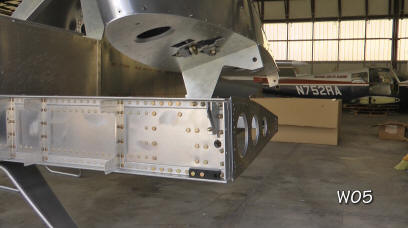

                         Wing fold mechanism                                                              Installing wing fold mechanism

 l

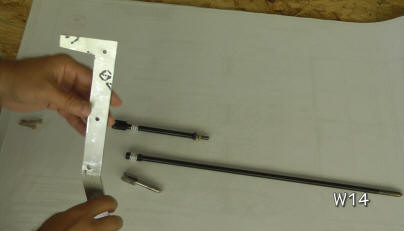

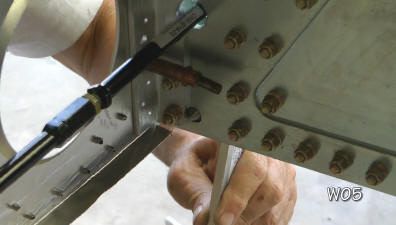

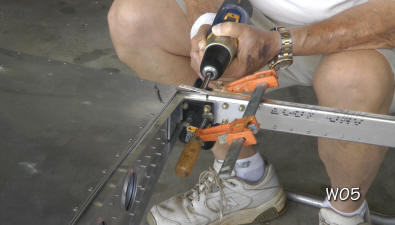

                              Drilling rear spar for pin                                                               Testing wing fold pins

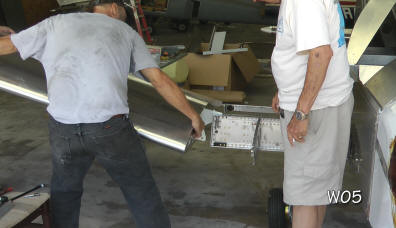

                         Inserting Wing for Drilling                                                           Close up of pivot location

All photos on this page are screen shots from the Volume 3 video

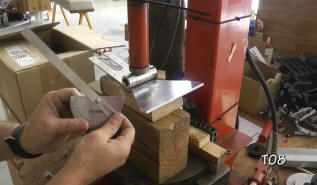

Bending Vertical tail horn in press

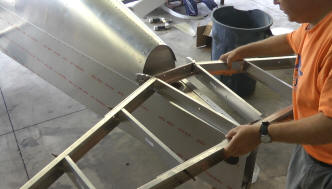

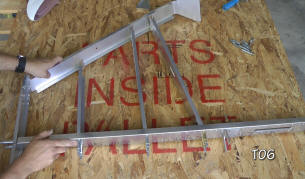

Assembling vertical tail skeleton

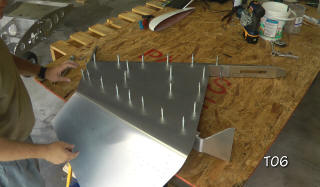

Fitting vertical tail skin

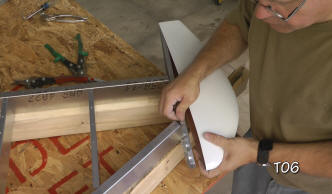

Trial fitting vertical tail cap

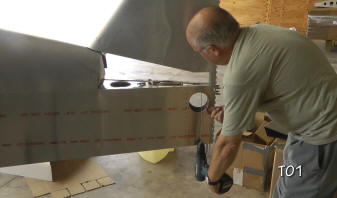

Trial fitting vertical tail to fuselage

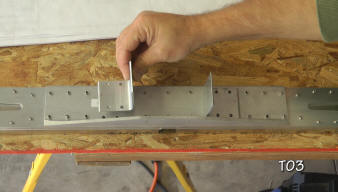

Constructing horiz stabilizer spar

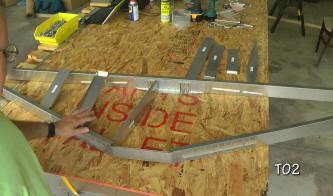

H Stabilizer skeleton layout


Stabilizer skin



Trial fitting stabilizer to fuselage

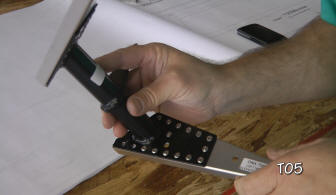

Elevator horn fabrication

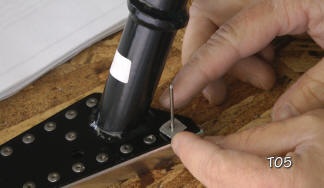

Demonstrating tricky rivet installation


Fitting elevator to stabilizer

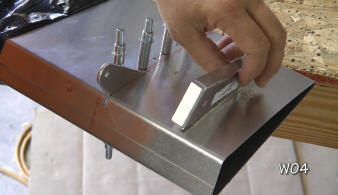

Aileron construction

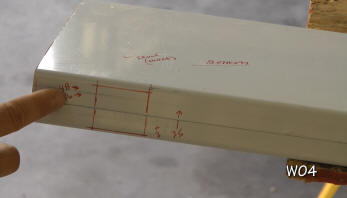

Layout for aileron cutout
