       Now available!

Rotax 912 Installation Tips & Techniques
A video presentation on how to properly configure and install one of the most popular aircraft engines in a Zenith

Correct lifting points on hoist

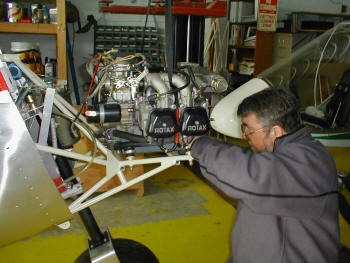

installation on to engine mount

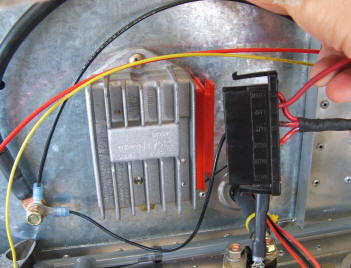

demonstration of wiring the rectifier/regulator
(we make this part easy!)

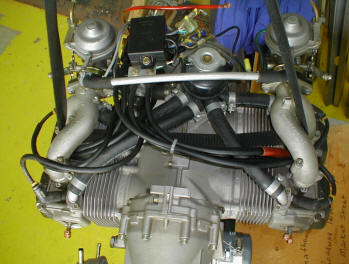

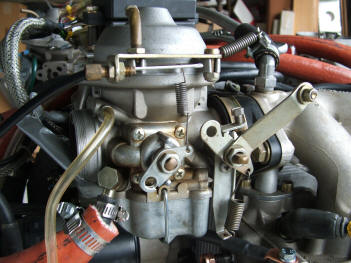

Carburetor hookup details (fuel, cables, vents)

Demonstrating pneumatic carb balancing
(the what and why of this important procedure)

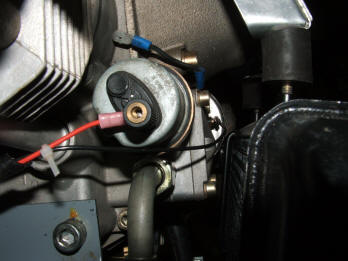

Wiring of pressure and temperature gauges and sensors

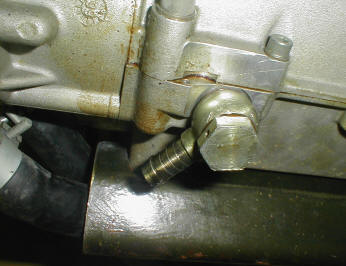

Oil return connection
(2 locations for this -- it does matter which you choose!)

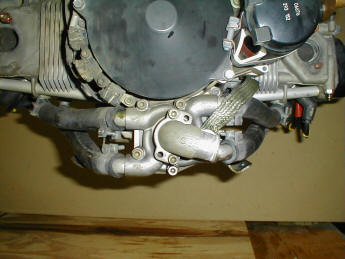

Water pump outlet options

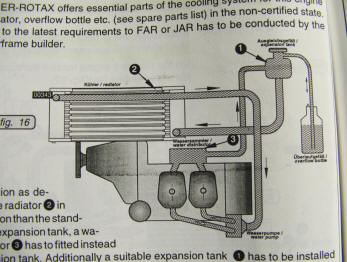

water cooling explanation

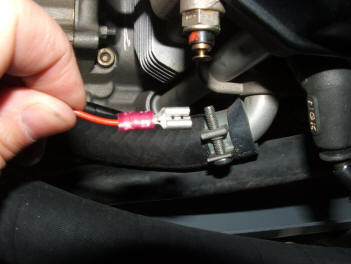

Wiring the cylinder head temp sensor



Inside the oil tank
(ever see inside one before?)







Installing a Rotax 912 or 912S for the first time?  Then this DVD was made for you!

This presentation explains the most important details of preparing and installing the popular Rotax 912 family of four stroke engines in your experimental homebuilt aircraft.  This reliable, high performance engine will only perform safely if installed properly as specified by the Rotax installation guide.  The important details in this guide are often misunderstood or even ignored completely resulting in catastrophic engine failures and dangerous flying situations.

This video makes the the installation guide come to life by demonstrating on screen an actual installation while explaining the theory behind the procedures!

Topics explained on screen by the knowledgeable instructor include:

How to configure and install the oil system (cooler, hoses, tank)

How to purge the oil system during the first time fill

How to configure and plumb the cooling system (hoses, radiator, overflow bottle, coolant)

Understanding and wiring the regulator/rectifier (Do I need a big capacitor?)

Generator capacity and hookup to the regulator/rectifier

How to wire the temperature sensors and gauges

Installation of the exhaust system

Carburetor and fuel system theory and hookup (cables for chokes and carbs)

Starter circuit and solenoid wiring

Detailed steps for the very first time startup

Synchronizing the carburetors - manually AND pneumatically!

Most common installation errors that have resulted in engine failures

The inside scoop on what  the issues with fuel and oil selection are

Much, much more!

DVD Running time: 1.5 hours



The same type of installation procedures and issues are also available by attending a $500 Rotax seminar.  For the price of this video you are HUNDREDS of $$ ahead of the game!  We are proud to say that this is the most cost effective investment you can make in your safety and investment whether you are planning or currently involved with an experimental aircraft project that utilizes the 912 or 912S engine.  We have documented and explained an actual engine installation from the beginning to first time runup, including balancing the carbs with vacuum gauges... learn by watching!



Available for just $36.00 U.S. (which includes first class/air mail shipping) We continue to strive to produce the best and lowest cost training DVDs for experimental aviation... we appreciate your business and invite your feedback.

Order with a check OR credit card using button below:

You may send a check for $36.00 (includes postage)  to:

HomebuiltHELP
Box 111
Brussels, WI  54204

Problems, questions?  email feedback@HomebuiltHELP.com

Snippet from video:
