Brake plans for Homebuilthelp Plans building DVD

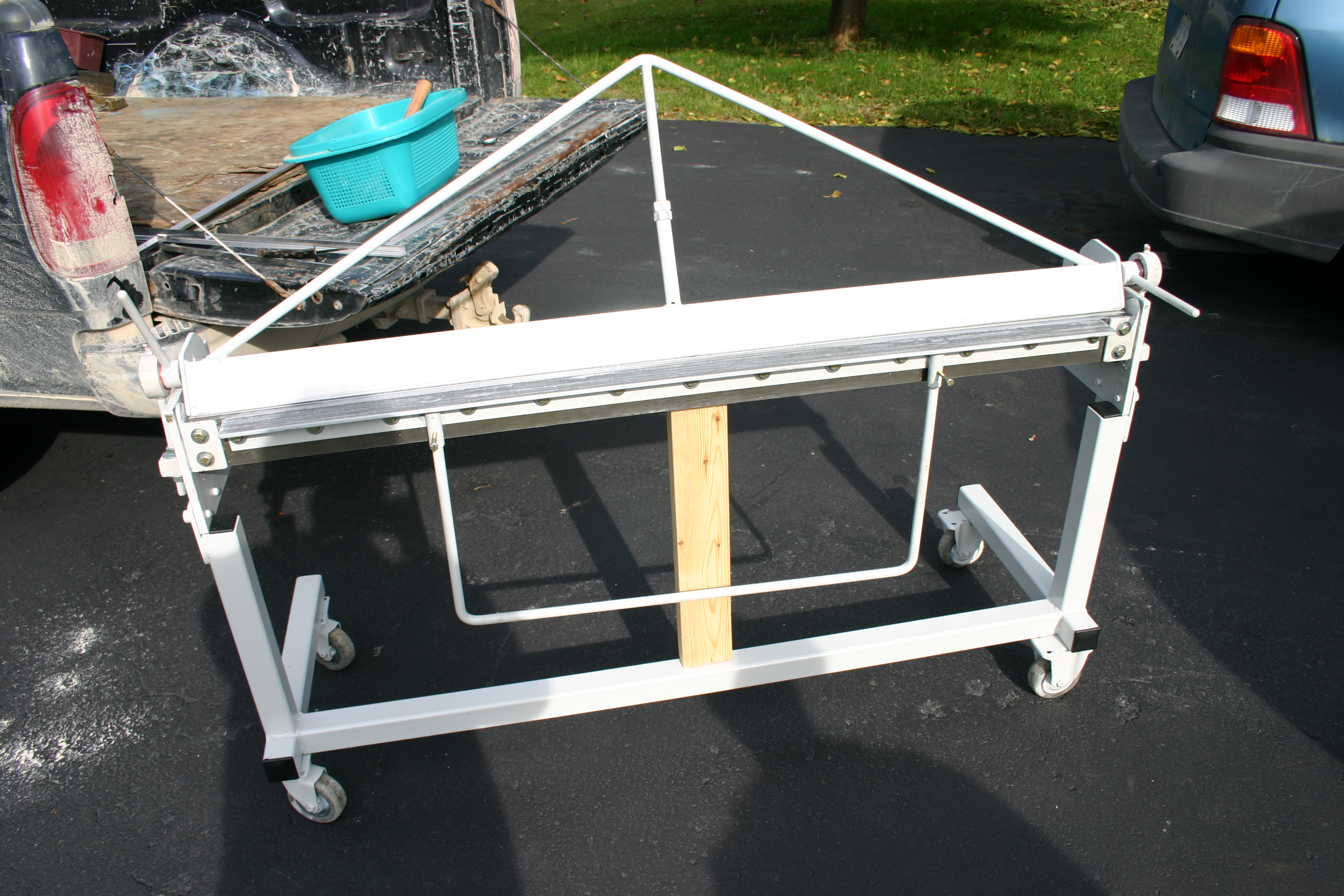

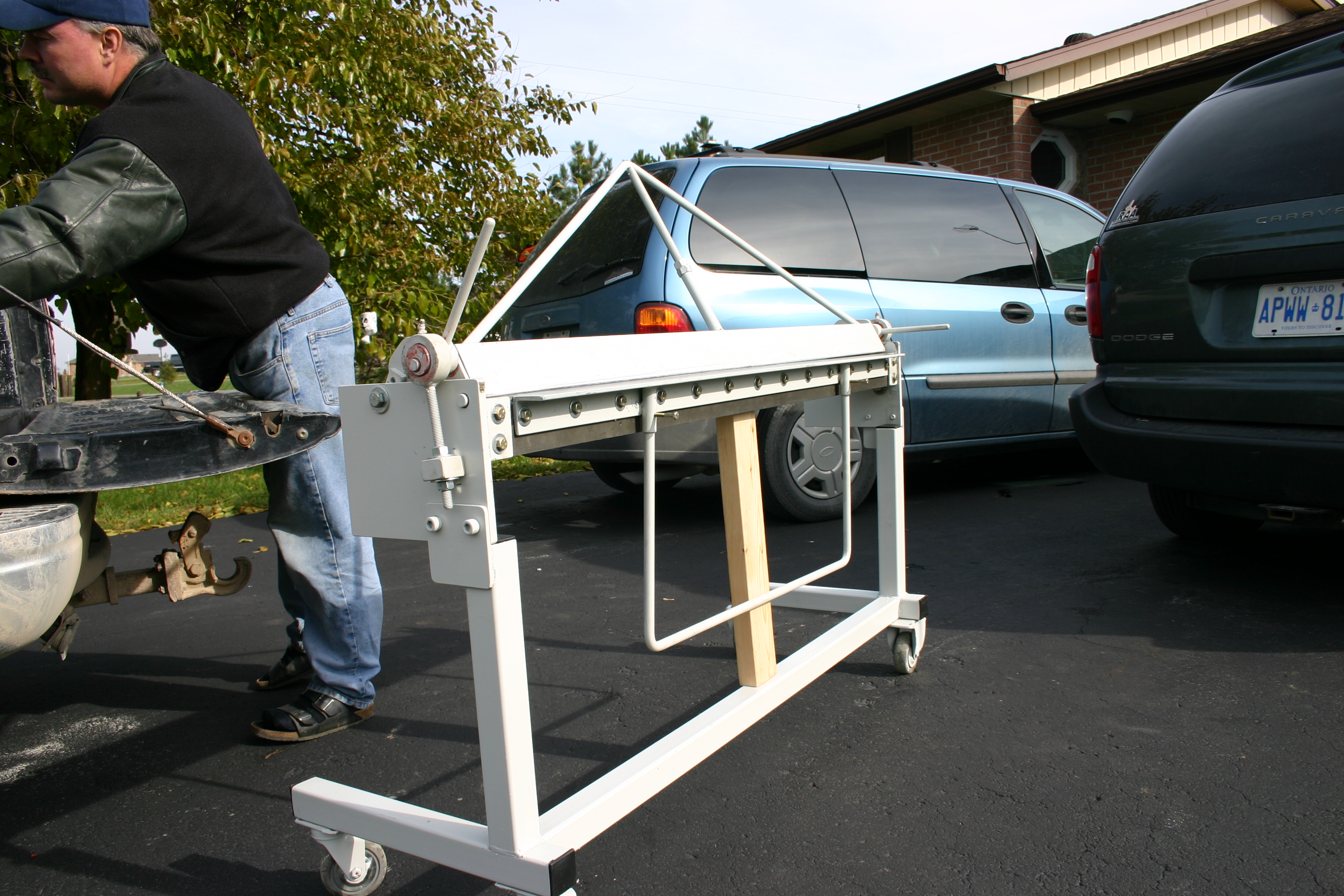

Here are the plans for the 52 inch brake that was used in the Scratch Builders DVD by www.homebuilthelp.com  . This brake was built with metal from a local scrap dealer and the total cost was less then $100 dollars. The brake is capable of .040 and a full 90 degree bend without deflection. The plans are in two formats one is Adobe pdf and the other is CAD dwg format. download the version you need. I would like to Thank Herbet Heaton for taking the time to decipher my hand drawings and providing these professional drawings for you.  Thanks Herbert!



Brake in pdf Zip format

Brake in dwg Zip format
