Jabiru 3300 -
This video removes the guesswork from building a reliable installation of a 3300 engine in your Rans S19 - demonstrated by technicians at JabiruUSA
For those experimental aircraft
builders that are considering the use of a Jabiru 3300 aircraft engine in their
homebuilt - please read on! This video was filmed on location at JabiruUSA, the largest Jabiru
dealer in the US, utilizing an S19 kit under construction. The purpose
of this presentation is to demonstrate how to install the popular 3300
engine on a Rans S19 homebuilt kit using the firewall forward components
supplied by Jabiru USA. The Jabiru 3300 provides an exciting alternative
to other engine possibilities in this aircraft. With this video DVD, you
can watch and learn how to install and hookup the components needed for
a reliable installation.
Engine crate unpacking and
Engine Mounting techniques

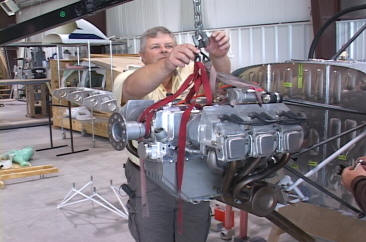

Observe and understand special considerations for mounting the engine on the S19 airframe: engine mount to firewall alignment, engine onto the mount itself. Rubber engine mount hardware: male-female part direction is important.
Prop flange removal/installation
The prop flange length needed on the S19 requires removing/replacing the factory installed flange.
Installation of the oil cooler and the requisite connections are essential for proper operation. The oil cooler needs to occupy a specific location in the cowl. Plumbing is demonstrated using the popular aero hose and connections.

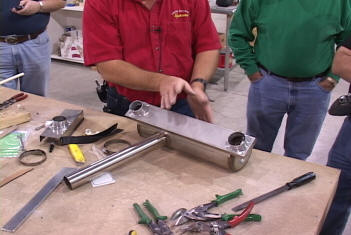

The Jabiru supplied muffler provides the necessary heat muffs for both cabin heat and carb heat. Location on the firewall for airbox components is shown.

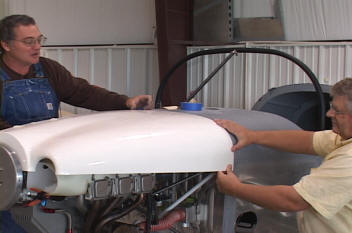

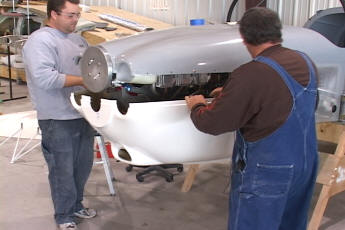

The cowl requires some trimming for the variations in aircraft configurations. A cowl fitting is demonstrated on a S19.
The key to proper cooling is the installation and customization of the fiberglass air ducts on each bank of cylinders
A detailed demonstration of modifying the carburetor arm to match the throttle requirements for the S19 is shown.
This affordable DVD video is approximately 1 hour 45 minutes in length and is divided into various video chapters to make navigation and review of desired sections fast and easy The $39 price includes handling and first class postage. (International orders welcome, air mail postage included!)
