$40 (includes US Shipping)
Press to Purchase


Building your Zenith CH701
912S Engine Installation

A step by step video guide for builders of the popular Zenith CH701 aircraft kit.

Return to Build Videos

This DVD features a Rotax 912S engine installation utilizing the dynafocal ring mount  included in the new Zenith firewall forward kit. The demonstrations and explanations on this DVD are very specific to this new mounting system with the CH701 airframe. For installation guidance utilizing the older bed mount with the CH701, we recommend our sister video: Rotax 912 Installation Tips & Techniques, which describes more generic installation details of the 912 engine. Both of these DVD titles from HomebuiltHELP compliment each other in the information they provide to the builder.


This DVD is a single volume in a series of videos being developed to cover the entire build process for the CH701 kit.  912S Engine Installation is meant to follow the building progress after construction of the FORWARD  FUSELAGE .

Note: This production is not associated or endorsed by Zenith Aircraft. It does not replace or supersede the documentation provided with the kit.  It is meant to be an aid in building the aircraft and its methods are presented only as a suggestion to builders.

This affordable DVD video is approximately 2 hours in length .  The $40 price includes handling and first class postage. (International orders welcome!)

$40.00  Includes First class (US) shipping

You can use your credit card by pressing the ADD to CART button below (uses secure encrypted connection)

 OR you can send a check for $40 to:

HomebuiltHELP
Box 111
Brussels, WI 54204

We ship same day we receive your check!

OR

If you want to pay by credit card but not online, then email us at support@HomebuiltHelp.com with your phone number and best time to call and we can complete the transaction on the phone





                 Oil cooler ducting                                             Throttle cable install




                   Preparing for engine start                                      Cowling preparation


Installing Ring Mount



Positioning water pump outlet



Oil tank installation

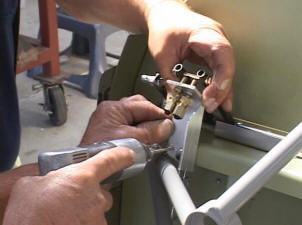

Installing throttle control brackets

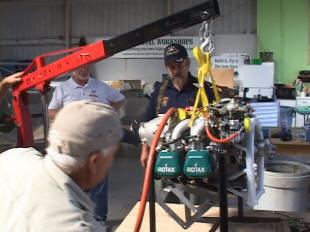

Hoisting engine onto aircraft



Bolting rubber mounts

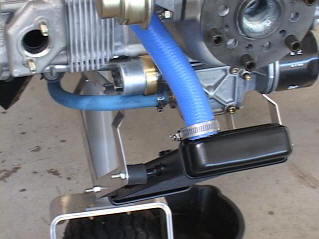

Oil cooler installation



Radiator mounting

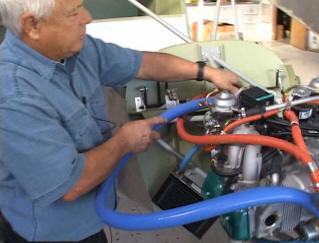

Proper routing of hoses



Lower hose attachment



Muffler preparation

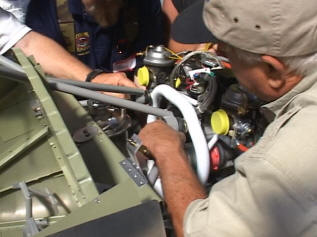

Exhaust pipe installation
